Altronix EBRIDGE16CR 16 OUTPUT ETHERNET/COAX RCVR

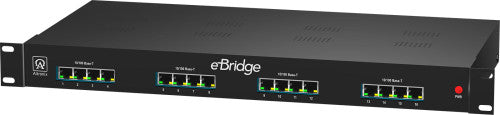

The eBridge16CR is a 16 channel ethernet over coax rack mount receiver. The eBridge16CR enables fast 10/100Base-T Ethernet digital communication to be transmitted over coax cable. This unit is designed to be used with eBridge1CT transceivers. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition the use of coax enables data transmission to be extended over 500m (over four times the 100m Ethernet maximum length), eliminating the need for repeaters. At the same time the units can combine Composite Video Signal with the Ethernet data enabling connection to an analog input on a monitor or matrix switch.
-sloc™ Compliant
Incorporates *sloc™ (Security Link over Coax) technology.
Input
24VDC to 56VDC UL Listed Class 2 power supply (polarity not observed) or UL Listed 24VAC Class 2 plug-in transformer.
Power Consumption
24VDC/1500mA, 56VDC/700mA, 24VAC/2200mA.
Ethernet
Sixteen (16) RJ45 ethernet channels.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat-5 or higher structured cable.
Distance: up to 100m.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
Coax
Sixteen (16) BNC input channels.
Sixteen (16) BNC composite video output channels.
Distance: up to 500m.
Connectivity: BNC, RG-59/U or similar.
LED Indicators
Blue LED - Coax link connection.
Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
Green LED - Power.
Temperature
Operating Temperature: - 10° C to +50° C ( 14° F to 122° F).
Storage Temperature: - 20° to 70° C (- 4° to 158° F ).
Relative humidity: 85%, +/- 5%, non-condensing.
BTU/Hr. (approx.):
24VDC: 18 BTU/Hr.
56VDC: 20 BTU/Hr.
24VAC: 27 BTU/Hr.
Operating Altitude
- 304.8 to 2,000m (-1000 to 6,561.679 ft.).
