Description

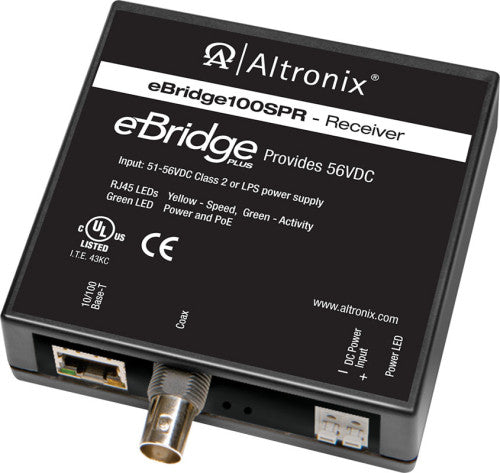

Altronix EBRIDGE100SPR EoC PoE+ RCV For EBRIDGE200WPM
The eBridge100SPR passes data and sends power over the coax to the eBridge200WPM 2-port Outdoor Transceiver. Data transmission and power over the Coax is possible up to 300m. Maximum range from head end to the PoE camera/device is 500m taking into consideration that up to 100m of structured cable may be deployed at each end. Built in IP management allows for remote camera reset, monitoring and reporting via various IP protocols.
Input
51-56VDC/60W max. power.
Power Output
Total output power: 60W.
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat-5 or better structured cable.
Distance: up to 100m.
Speed: 100BaseT, full duplex, auto negotiation.
Coax
Distance: up to 300m.
Connectivity: BNC, RG-59/U or similar.
Throughput is rated 100Mbps full duplex.
LED Indicators
Blue LED - Coax link connection.
Green LED - Power.
Yellow and Green LED (RJ45) IP Link status, 100Base-T/active.
Environmental
Operating temperature: - 20° C to 50° C ( - 4° F to 122° F).
Storage temperature: - 30° to 70° C ( - 22° to 158° F).
Humidity: 20 to 85%, non-condensing.
Operating Altitude
- 304.8 to 2,000m (-1000 to 6,561.679 ft.).
