Altronix EBRIDGE100RM 1CH EOC RCVR PASS POE+ 100MBPS

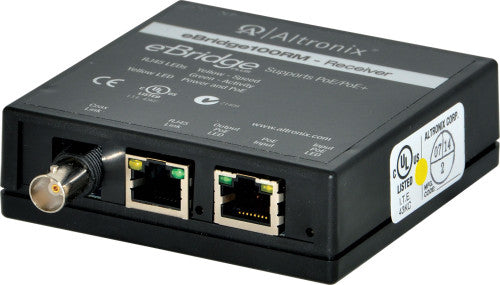

eBridge100RM is a versatile dual solution Ethernet receiver/media converter which transmits data at 100Mbps full duplex and power over Coax cable or extended CAT5e cable in a PoE+ compliant format. The eBridge100RM is powered via a PoE midspan such as the Altronix NetWay series or by an endspan. The receiver passes the PoE(+) compliant power over cable to the eBridge100TM/eBridge100ST transceiver which in turn passes this power to an enabled IP Camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over existing coax or structured cable.
Input
Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5.
Distance: up to 500m.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge100TM. Power provided by eBridge100RM to eBridge100TM by PoE protocol.
Throughput is rated to pass 100Mbps of data at distances up to 500m.
Coax link
Distance: Coax 300m for power delivery.
Connectivity: BNC, RG-59/U or similar.
Coax or CAT5e link
Distance: CAT5e up to 500m, Coax 300m for power delivery.
LED Indicators
eBridge100RM and eBridge100TM:
Yellow - PoE ON (by respective RJ45 jack).
eBridge100RM and eBridge100TM:
Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
Temperature
Operating Temperature:
eBridge100RM: -20ºC to 49ºC ( -4ºF to 120.2ºF).
eBridge100TM: -20ºC to 49ºC ( -4ºF to 120.2ºF).
eBridge100ST: For 15W: -40ºC to 75ºC ( -40ºF to 167ºF); For 30W: -40ºC to 60ºC ( -40ºF to 140ºF).
Storage Temperature:
-30º to 70ºC (-22º to 158ºF).
Relative humidity: 85%, +/- 5%, non-condensing.
Operating Altitude
- 304.8 to 2,000m ( - 1,000 to 6,561.679 ft.).
Functions
Auto detection and protection of legacy non-PoE cameras/devices.
