Description

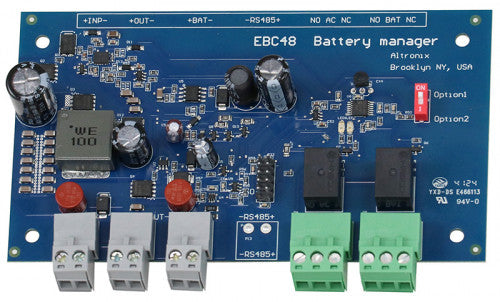

Altronix EBC48 EXTERNAL BATTERY CHARGER 48VDC
Altronix EBC48 external battery charger provides rapid charging of back-up batteries. Ideal
when integrated with Altronix NetWay Spectrum Hardened Switches working with POE240
or POE360/POE367 power supplies to recharge 32AH in under 8 hours.
Perfect for applications where constant power isn’t available (switched power) such as a
light pole or other location. During the day, when the power is off, the battery will power the
devices (up to 100W total) for 16 hours. When power is restored, it’s routed to the devices
first and any excess is used to rapidly recharge the battery. EBC48 is a great alternative
to expensive solar deployments, trenching to achieve a pathway for traditional electrical
connectivity.
Input
Voltage: 56VDC from POE240 or POE360/POE367
Battery Charging
Type: LiFePO4, sealed lead acid or gel type charging four (4) 12V batteries in series
Current: 2A or 4A selectable operation
Failover: Upon AC loss, instantaneous
(Batteries are sold separately)
Indicators (LED)
Green: Feed from power supply
Red: Feed from battery
Blinking Red: Battery trouble
Supervision
AC Failure: Form “C” contacts
Low or Missing Battery: Form “C” contacts
Electrical
Temperature:
Operating: - 20º C to 49º C (- 4º F to 120º F).
Storage: – 20º C to 70º C (– 4º F to 158º F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 34.1 BTU/Hr.
