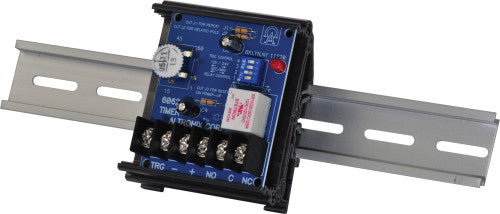

Altronix DTMR1 12/24VDC DIN MOUNT TIMER

Altronix DTMR1 12/24VDC DIN MOUNT TIMER

Altronix DTMR1 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher. A new feature has been added which provides a momentary relay activation at the end of a desired timing cycle. This feature eliminates the need for having to use two (2) timers to achieve this function. Another new feature will cancel (interrupt) timing cycle and reset timer if desired.

Input
12VDC or 24VDC operation is selectable.

Relay
Form “C” relay contacts are 8A at 120VAC/28VDC.
Current Draw: Stand-by 3mA; Relay Energized 40mA.

Visual Indicators
LED indicates relay is energized.

Features
Quick and extremely accurate time range adjustment from 1 sec. to 60 min.
Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
Selectable relay activation at the start or end of the timing cycle.
One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
Built-in reset feature which cancels timing cycle.
Repeat (pulser/flasher) mode.
Snap Track compatible (order Altronix model #ST3)

Temperature
Operating 0ºC to 49ºC ( 32ºF to 120ºF).
Storage - 20ºC to 70ºC ( -4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
