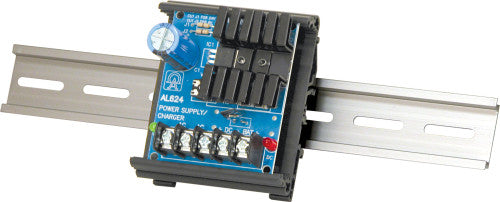

Altronix DPS1 6/12/24 VDC 1.2A P/S CHGR

Altronix DPS1 6/12/24 VDC 1.2A P/S CHGR

Altronix DPS1 power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.

Input
6VDC or 12VDC output use TP1640 or 24VDC output use T2428100.

Output
6VDC, 12VDC or 24VDC selectable output.
1.2A continuous supply current at 6VDC-12VDC. 750mA continuous supply current at 24VDC.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Battery short circuit protection (circuit breaker).

Visual Indicators
AC input and DC output LED indicators.

Features
Extremely compact design.
Includes battery leads.
Snap Track compatible (order Altronix model number ST3).

Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
6VDC: 4 BTU/Hr.
12VDC: 7 BTU/Hr.
24VDC: 9 BTU/Hr.

System AC input VA requirement: 6VDC: 220VA; 12VDC: 330VA; 24VDC: 960VA.
