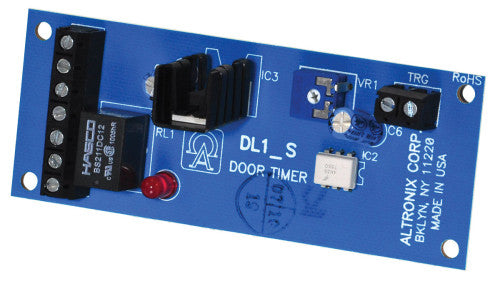

Altronix DL1 DOOR TIMER

Altronix DL1 DOOR TIMER

Altronix DL1 is a 1 second to 1 minute door control timer that is used for basic door operation. This timer can be activated with a momentary or maintained trigger.

Input
12 volt - 24 volt AC or DC operation.

Relay
Dry relay output (1 form "C" contact, rated @ 2A).
12VDC regulated beeper output.

Features
Isolated AC or DC voltage 5V-24V trigger.
Time adjustable from 1 second to 1 minute.
Momentary or maintained trigger.

Visual Indicators
Indicates relay is energized.

Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
