Description

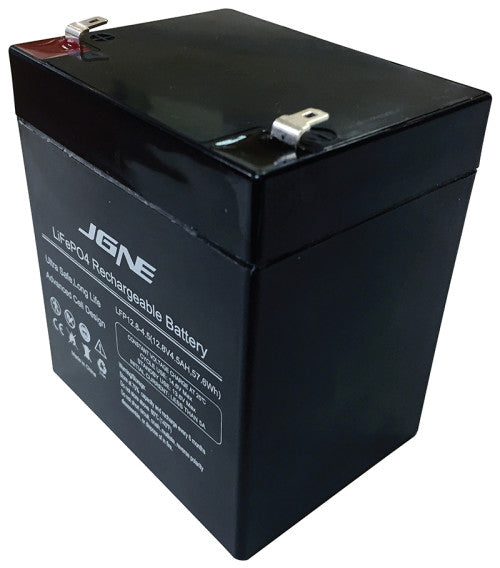

Altronix BTL125 12VDC/4.5AH LITHIUM BATTERY
Altronix BTL125 rechargeable Lithium Iron Phosphate (LiFePO4) Battery supplies 12VDC for security, access, surveillance, and fire applications. It offers up to 10 times longer cycle life with only about 50% of the weight of a comparable lead acid battery.
Electrical
Normal Voltage: 12.8V.
Rated Capacity: 4.5 +/-0.3A/H.
Energy: ~57.6W/H.
Overcharge and overdischarge protection.
Standard Charge
Charge Voltage: 14.4 +/-0.15V.
Charge Current: 1A.
Max. Charge Current: 2.25A.
Standard Discharge
Continuous Current: 2.25A.
Max. Continuous Current: 8A (for ~5 min.)
Discharge Cut-off Voltage: 10.0V.
Temperature
Operating:
Charging: 0ºC to 45ºC (32ºF to 113ºF).
Discharging: -20ºC to 60ºC (-4ºF to 140ºF).
Storage: 0° C to 40° C (32° F to 104° F).
Relative Humidity: 85% +/- 5%.
Operating Altitude
- 304.8 to 2,000m.
