Description

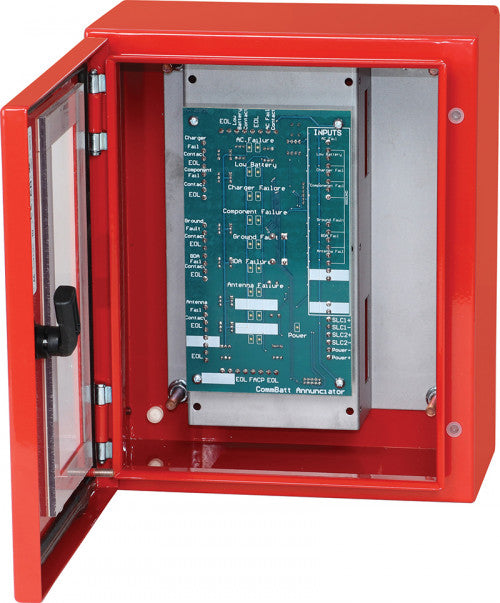

Altronix ANC1BBU COMMBATT1 REMOTE ANNUNCIATOR
Altronix CommBatt, ANC1BBU Annunciator is designed to provide compliance with the
requirements of UL 2524 for in-building 2 Way Emergency Radio Communication Systems.
It allows local and remote annunciation of various trouble conditions of BDA (Bi-Directional
Amplifier) and BBU (Battery Backup Unit) and reporting those conditions to the FACP
through the separate set of dry contacts, visual and audible indicators.
Input
Voltage: 12-24 VDC, 400mA input power
Input fuse: 2A.
Supervised Inputs
Nine (9) 10K EOL supervised inputs to connect to power supply and other equipment that require annunciation of trouble conditions:
- AC Fail
- Low Battery
- Charger Fail
- Component Fail
- RF Emitter Failure
- Donor Antenna Disconnect
- Donor Antenna Malfunction
- RF Emitter Component Failure
Relay Outputs (Dry NC Contacts Relays)
Ten (10) Form “C” output contacts to connect to FACP and other monitoring equipment with convenient end of line resistor wiring terminals.
Use to report trouble conditions to FACP or other equipment:
- AC Fail
- Low Battery
- Charger Fail
- Component Fail
- RF Emitter Failure
- Donor Antenna Disconnect
- Donor Antenna Malfunction
- FACP Reporting
- Communication Failure
Indicators
10 bicolor visual indicators of trouble conditions visible through the observation window of the enclosure.
Physical and Environmental
NEMA-4, UL Listed stainless steel red powder coated wall mount enclosure.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF)
Storage: – 20ºC to 70ºC (– 4ºF to 158ºF)
Relative Humidity
85% +/– 5%
