Description

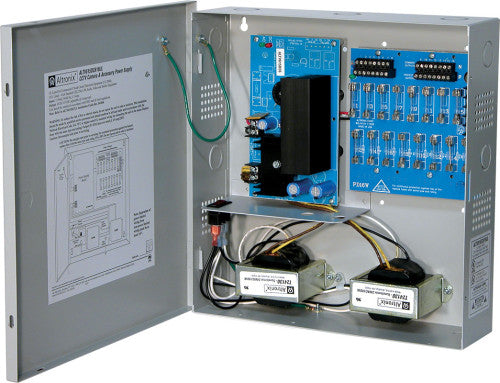

ALTV615DC616220 ALTV615DC616 220VAC INPUT
ALTV615DC616220 provides 6VDC to 15VDC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters, and other video accessories.
Input
Input 220VAC (working range 198VAC 256VAC), 50/60 Hz, 1A.
Output
Sixteen (16) fuse protected outputs.
6VDC to 15VDC field adjustable.
6A total continuous supply current (0.375A per device, 3.5A max.).
Output fuses are rated @ 3.5A/250VAC.
Filtered and electronically regulated outputs.
Temperature
Operating 0 to 49° C (32 to 120° F )
Storage - 20 to 70° C ( - 4 to 158° F)
Relative Humidity 85% +/- 5%
BTU/Hr. (approx.): 18-46 BTU/Hr.
System AC input VA requirement: 220VA.
Features
AC input and DC output LED indicators.
Illuminated power disconnect circuit breaker with manual reset.
Spare fuse(s) provided.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
