Description

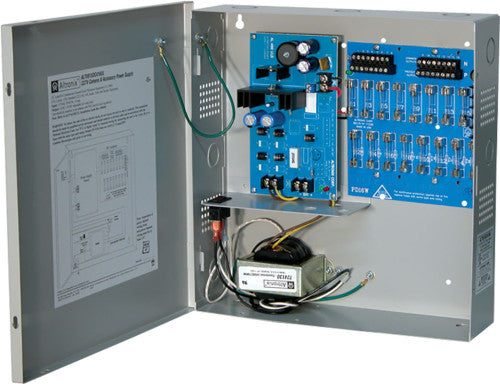

Altronix ALTV615DC416UL 6-15VDC 16 FUSE 4A CCTV UL
ALTV615DC416UL provide 6VDC to 15VDC distributed via sixteen (16) Class 2 Rated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Input
Input 115VAC, 50/60 Hz, 0.9A.
Output
Sixteen (16) Class 2 Rated fuse protected power limited outputs.
6VDC to 15VDC field adjustable.
4A total continuous supply current (0.25A per device, 3.5A max.).
Output fuses are rated @ 3.5A/250VAC.
Filtered and electronically regulated outputs.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 9 - 23 BTU/Hr.
System AC input VA requirement: 103.5VA.
Features
AC input and DC output LED indicators.
Illuminated power disconnect circuit breaker with manual reset.
Spare fuse(s) provided.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
