Description

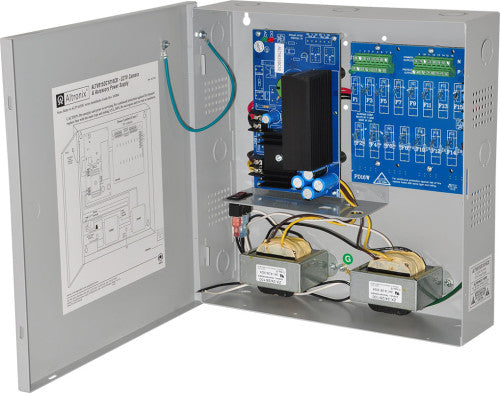

Altronix ALTV615DC1016CB 6-15VDC 10A 16 PTC CCTV P/S
ALTV615DC1016CB provides 6-15VDC distributed via sixteen (16) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
Input 115VAC, 50/60 Hz, 1.9A.
Output
Sixteen (16) PTC protected outputs (auto-resettable).
6VDC to 15VDC field adjustable.
10A total continuous supply current (0.625A per device, 3.5A max.).
Output fuses are rated @ 2.5A/250VAC.
Filtered and electronically regulated outputs.
Temperature
Operating 0 to 49° C (32 to 120° F )
Storage - 20 to 70° C ( - 4 to 158° F)
Relative Humidity 85% +/- 5%
BTU/Hr. (approx.): 31-77 BTU/Hr.
System AC input VA requirement: 218.5VA.
Features
AC input and DC output LED indicators.
Illuminated power disconnect circuit breaker with manual reset.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
