Description

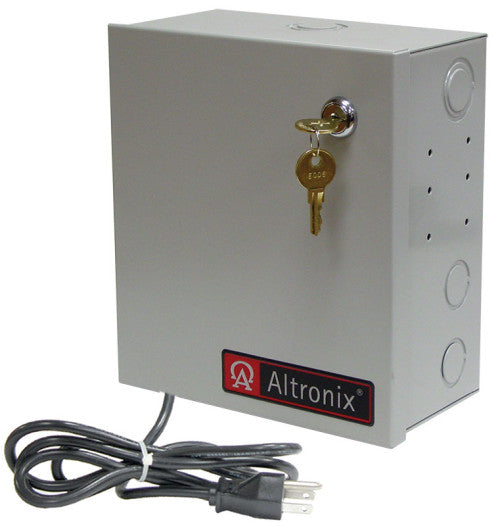

Altronix ALTV248ULMI3 8 ISO FUSEOUT CCTV MIN ENC 3LC
ALTV248ULMI3 Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 3A.
Output
Eight (8) fuse protected outputs.
24VAC @ 12.5A (300VA) supply current.
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 154 BTU/Hr.
System AC input VA requirement: 345VA.
Features
Illuminated master power disconnect circuit breaker with manual reset.
Unit maintains camera synchronization.
Spare fuses provided.
Factory installed 3-wire line cord.
