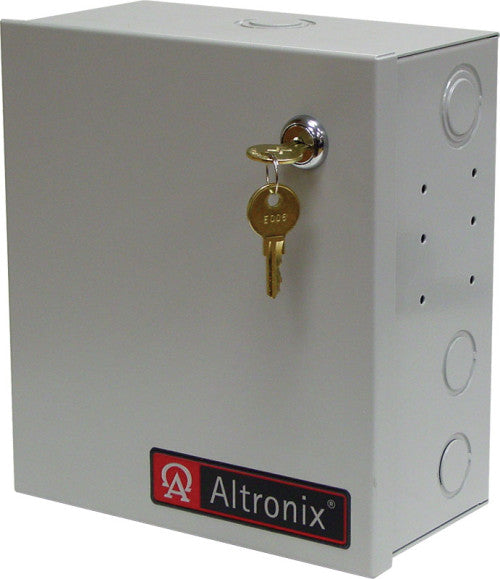

Altronix ALTV248ULMI 8 ISO FUSED OUT CCTV MINI ENCL
ALTV248ULMI Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
-Input
115VAC, 50/60Hz, 3A.
Output
Eight (8) fuse protected outputs.
24VAC @ 12.5A (300VA) supply current.
Outputs are rated @ 3.5A.
Surge suppression.
Features
Illuminated master power disconnect circuit breaker with manual reset.
Unit maintains camera synchronization.
Spare fuses provided.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 154 BTU/Hr.
System AC input VA requirement: 345VA.
