Description
ALTV248600220 24VAC/28A 28VAC/24A 8FUSE 220

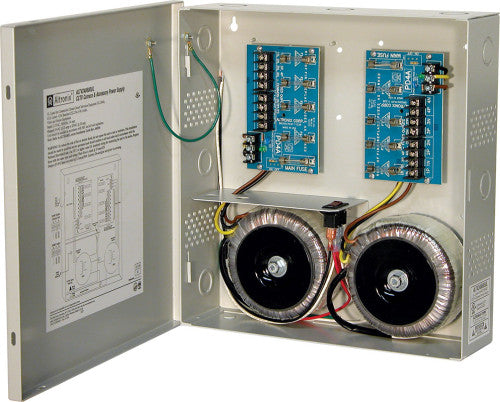

ALTV248600220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 2.7A.
Output
Eight (8) fuse protected outputs.
24VAC @ 28A (700VA) supply current (3.5A per device, 3.5A max.) or 28VAC @ 25A (700VA) supply current (3.125A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr.:
24VAC: 344 BTU/Hr.
28VAC: 358 BTU/Hr.
System AC input VA requirement: 594VA.
Features
Secondary fuse rated @ 15A/32V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
