Description
ALTV248220 24VAC/4A/8 OUT CCTV P/S 220V

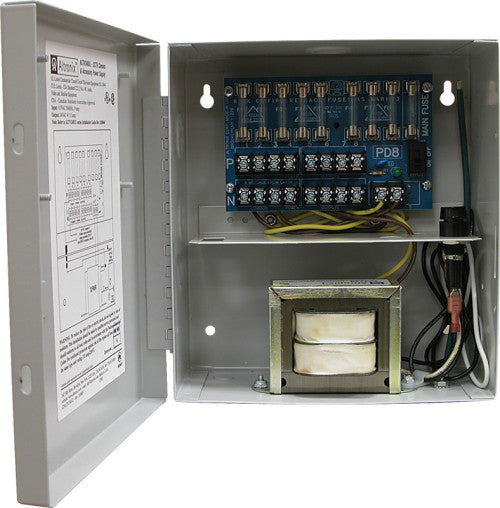

ALTV248220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 0.5A.
Output
Eight (8) fuse protected outputs.
24VAC @ 4A (100VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.438A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 49 BTU/Hr.
28VAC: 50 BTU/Hr.
System AC input VA requirement: 110VA.
