Description

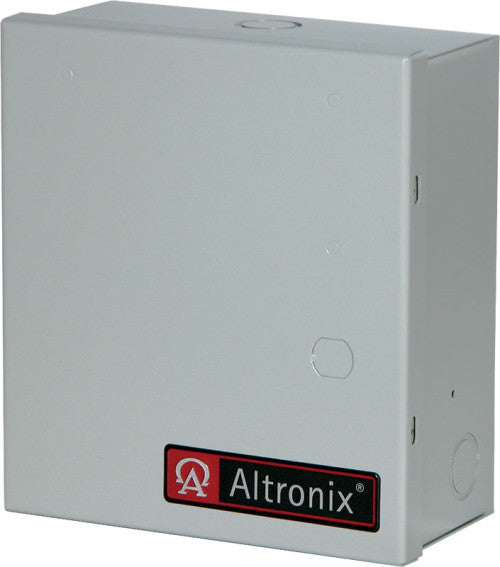

ALTV244CB220 24VAC/4A/4 PTC CCTV P/S 220V
ALTV244CB220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 0.5A.
Output
Four (4) PTC protected outputs (auto-resettable).
24VAC @ 4A (100VA) supply current (1A per device, 2.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.875A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 49 BTU/Hr.
28VAC: 50 BTU/Hr.
System AC input VA requirement: 110VA.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
