Description

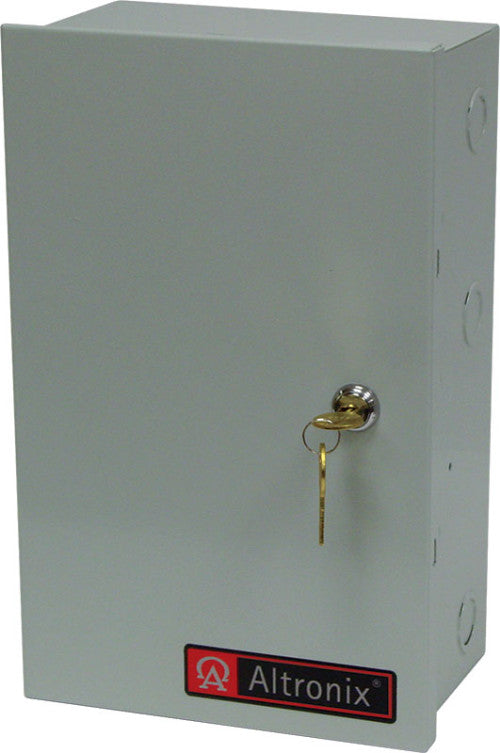

Altronix ALTV244175ULCB 24VAC 4PTC OUTPUT UL CCTV P/S
ALTV244175ULCB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 2.7A.
Output
Four (4) (auto-resettable) PTC protected outputs.
24VAC @ 7A (170VA) supply current (1.75A per device, 2.5A max.) or 28VAC @ 6.25A (175VA) supply current (1.56A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 86 BTU/Hr.
28VAC: 90 BTU/Hr.
System AC input VA requirement: 310.5VA.
Features
Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
