Description
ALTV244175220 24VAC/7.25A/4 OUT CCTV P/S 220

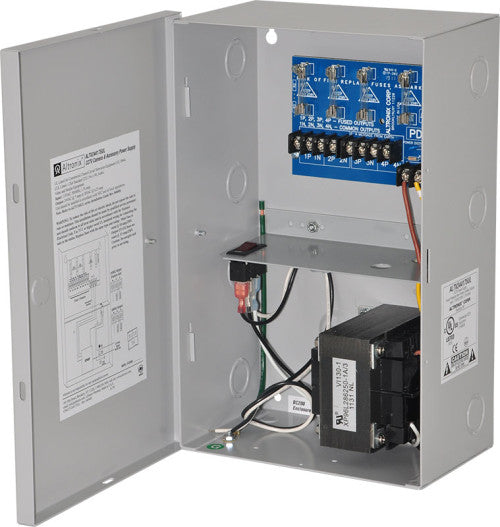

ALTV244175220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 0.8A.
Output
Four (4) fuse protected outputs.
24VAC @ 7.25A (175VA) supply current (1.81A per device, 3.5A max.) or 28VAC @ 6.25A (175VA) supply current (1.56A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 89 BTU/Hr.
28VAC: 90 BTU/Hr.
System AC input VA requirement: 176VA.
Features
Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
