Description

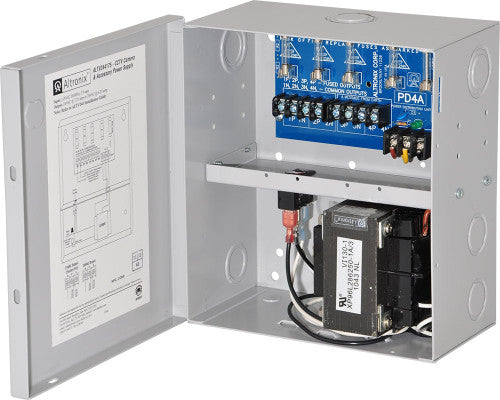

Altronix ALTV244175 24 VAC /7.25A/4 OUT CCTV P/S
ALTV244175 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 1.5A.
Output
Four (4) fuse protected outputs.
24VAC @ 7.25A (175VA) supply current (1.81A per device, 3.5A max.) or 28VAC @ 6.25A (175VA) supply current (1.56A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Features
Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 89 BTU/Hr.
28VAC: 90 BTU/Hr.
System AC input VA requirement: 172.5VA.
