Description

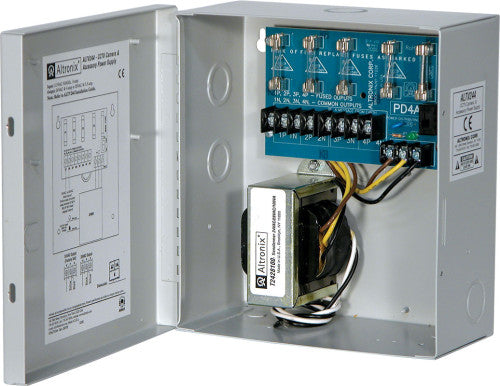

Altronix ALTV244 24 VAC/4A/4 OUT CCTV P/S
ALTV244 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 0.9A.
Output
Four (4) fuse protected outputs.
24VAC @ 4A (100VA) supply current (1A per device, 3.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.875A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 49 BTU/Hr.
28VAC: 50 BTU/Hr.
System AC input VA requirement: 103.5VA.
