Description
Altronix ALTV2432350CB 24VAC/14A 28VAC/12A 32 PTC PS

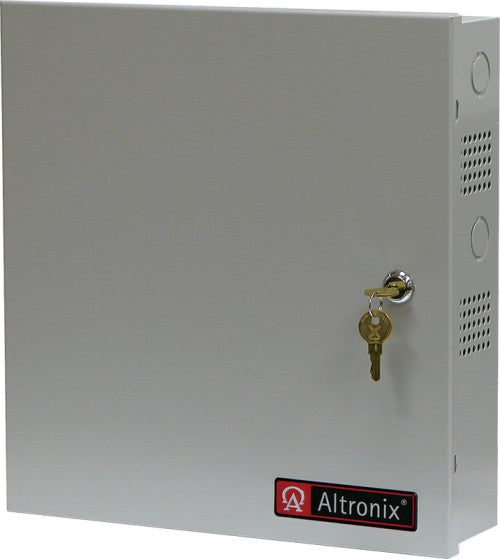

ALTV2432350CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Thirty-Two (32) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 2.7A.
Output
Thirty-Two (32) PTC protected outputs (auto-resettable).
24VAC @ 14A (350VA) supply current (0.438A per device, 2.5A max.) or 28VAC @ 12.5A (350VA) supply current (0.391A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 172 BTU/Hr.
28VAC: 179 BTU/Hr.
System AC input VA requirement: 310.5VA.
Features
Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.
