Description
ALTV2416X220 16 FUSE OUT 24AC CCTV P/S 220V

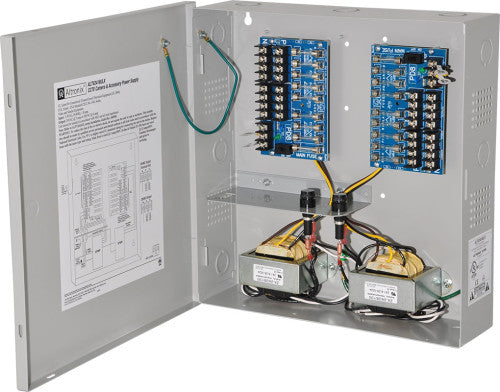

ALTV2416X220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 0.5A.
Output
Sixteen (16) fuse protected outputs.
24VAC @ 8A (170VA) or 28VAC @ 7A (170VA) supply current.
Outputs are rated @ 3.5A.
Sixteen (16) 1.56A isolated outputs.
Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 101 BTU/Hr.
System AC input VA requirement: 110VA.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided (all models w/primary and/or secondary fuses).
Unit maintains camera synchronization.
