Description

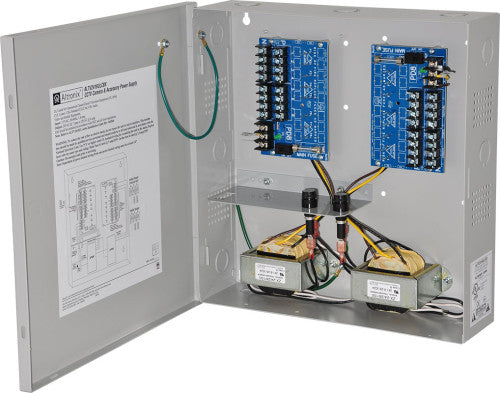

Altronix ALTV2416ULCBX 24VAC/7A/16 PTC UL CCTV P/S
ALTV2416ULCBX provides 24VAC or 28VAC distributed via Sixteen (16) Class 2 Rated PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 1.8A.
Output
Sixteen (16) Class 2 Rated PTC protected outputs (auto-resettable).
24VAC @ 7A (170VA) supply current (0.438A per device, 2.5A max.) or 28VAC @ 6A (170VA) supply current (0.375A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 86 BTU/Hr.
System AC input VA requirement: 207VA.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
