Description

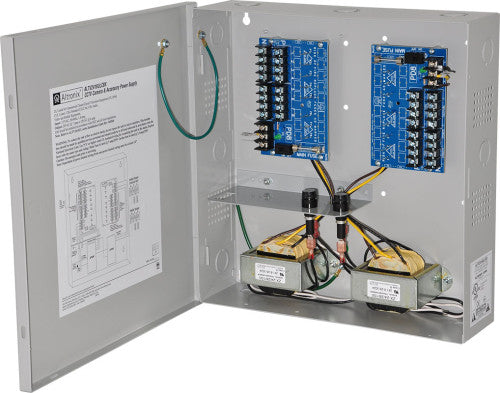

ALTV2416CBX220 16 PTC OUT 24VAC CCTV P/S 220V
ALTV2416CBX220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via sixteen (16) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 0.5A.
Output
Sixteen (16) PTC protected outputs.
24VAC @ 7A (170VA) or 28VAC @ 6A (170VA) supply current.
Outputs are rated @ 2.5A.
Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 101 BTU/Hr.
System AC input VA requirement: 110VA.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
