Description
Altronix ALTV2416600 24VAC/28A 28VAC/24A 16 fuse PS

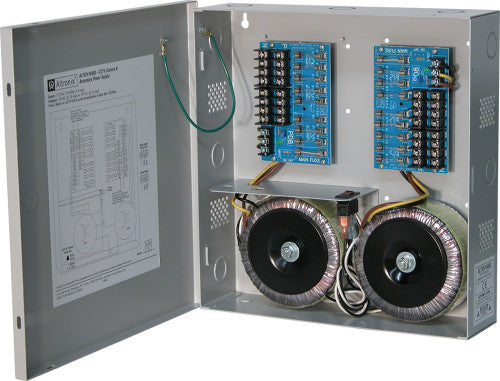

ALTV2416600 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 5.4A.
Output
Sixteen (16) fuse protected outputs.
24VAC @ 28A (700VA) supply current (1.75A per device, 3.5A max.) or 28VAC @ 25A (700VA) supply current (1.563A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Features
Main fuse rated @ 15A/32V.
AC power LED.
Spare fuses provided. (all models w/primary and/or secondary fuses).
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 344 BTU/Hr.
28VAC: 358 BTU/Hr.
System AC input VA requirement: 621VA.
