Description

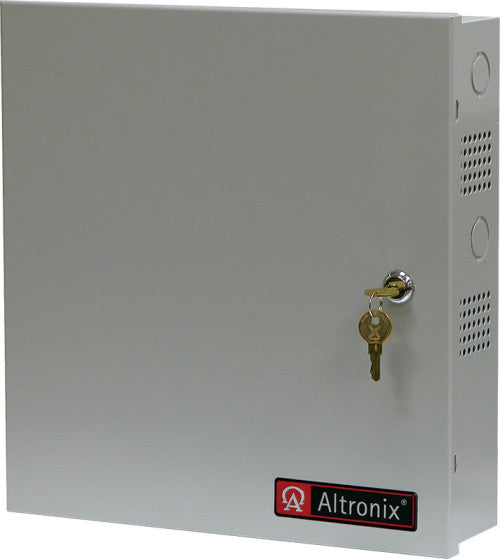

Altronix ALTV2416350CB 24VAC/14A 28VAC/12A 16 PTC PS
ALTV2416350CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Sixteen (16) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 2.7A.
Output
Sixteen (16) PTC protected outputs (auto-resettable).
24VAC @ 14A (350VA) supply current (0.875A per device, 2.5A max.) or 28VAC @ 12.5A (350VA) supply current (0.781A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 172 BTU/Hr.
28VAC: 179 BTU/Hr.
System AC input VA requirement: 310.5VA.
Features
Main fuse rated @ 15A/32V.
AC power LED.
