Description

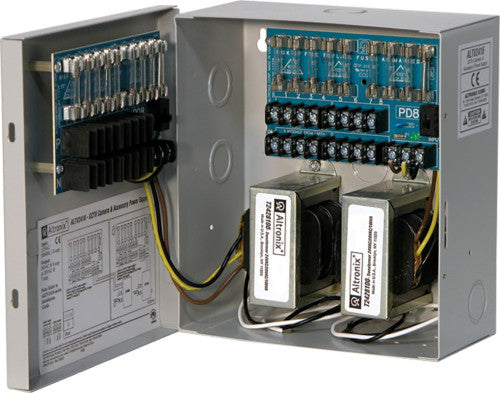

Altronix ALTV2416 24VAC/8A/16OUT CCTV P/S
Model ALTV2416 provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs. ALTV2416220 is a 220VAC Input version of this unit.
Input
115VAC, 50/60Hz, 1.9A.
Output
Sixteen (16) fuse protected outputs.
24VAC @ 8A (192VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 7A (196VA) supply current (0.438A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 98 BTU/Hr.
28VAC: 100 BTU/Hr.
System AC input VA requirement: 218.5VA.
Features
Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).
