Description

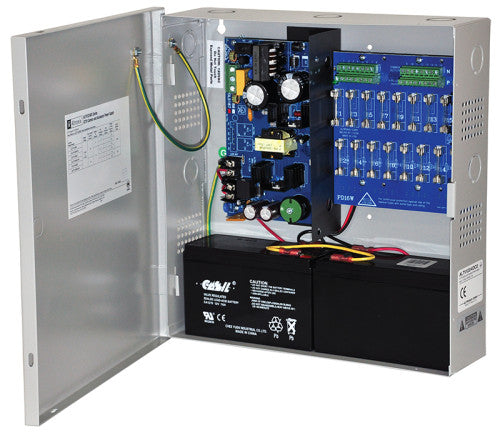

ALTV1224DCCB220 12/24VDC 4A, 8 PTC P/S 220V
ALTV1224DCCB220 is designed to power CCTV cameras and accessories. It provides 12VDC or 24VDC distributed via eight (8) PTC protected outputs with a total of 4A total supply current.
Input
Input 220VAC (working range 198VAC-256VAC), 50/60Hz, 0.9A.
Output
Eight (8) PTC protected outputs (auto-resettable).
12VDC or 24VDC field adjustable.
4A total continuous supply current (0.5A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Battery Charging
Capacity: 12VDC /7AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement: 198VA.
Features
AC input and DC output LED indicators.
Power ON/OFF switch.
Ease of installation saves time and eliminates costly labor.
