Description

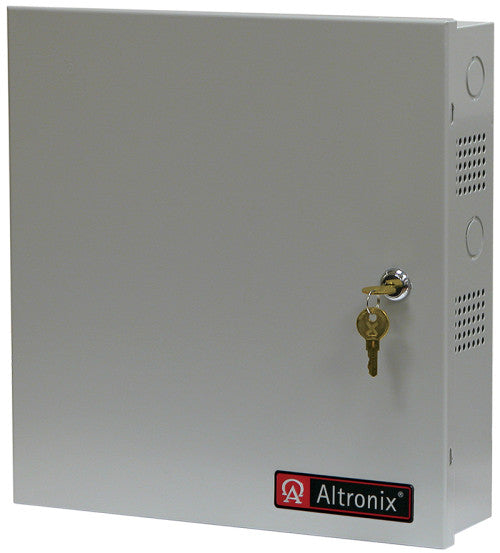

Altronix ALTV1224DC1CB 12/24 VDC 4A 16 FUSE CCTV P/S
ALTV1224DC1CB is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via sixteen (16) PTC protected outputs with a total of 4A total supply current.
Input
Input 115VAC, 50/60 Hz, 1.45A.
Output
Sixteen (16) PTC protected outputs (auto-resettable).
12VDC or 24VDC.
4A total continuous supply current (0.25A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Battery Charging
Capacity: 12VDC/7AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement: 166.75VA.
Features
AC input and DC output LED indicators.
Power ON/OFF switch.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
