Description
ALTV1224C220 12VDC/24VAC16 OUT CCTV 220V IN

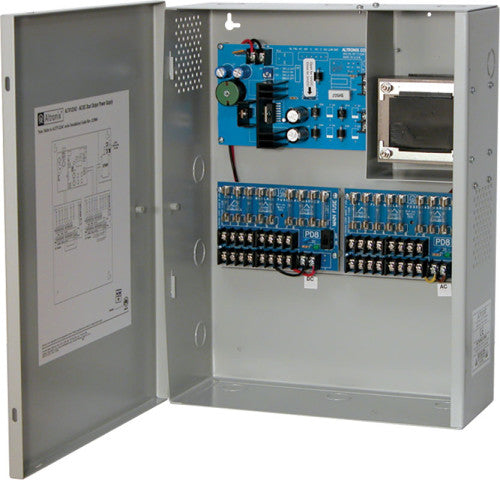

ALTV1224C220 AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs are required.
Input
220VAC 50/60 Hz, 0.8A.
Output
Sixteen (16) individually fused outputs.
Eight (8) fuse protected outputs @ 12VDC.
Eight (8) fuse protected outputs @ 24VAC.
7A total output current.
3.5A supply current @ 12VDC.
3.5A supply current @ 24VAC.
Output fuses are rated @ 3.5A/250VAC.
Main fuses are rated at 5A/250VAC.
Filtered and electronically regulated outputs (DC outputs).
Surge suppression (AC outputs).
Features
AC/DC power LED indicators.
Power ON/OFF switch.
Unit maintains camera synchronization.
Ease of installation saves time & eliminates costly labor.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 64 BTU/Hr.
System AC input VA requirement: 176VA
