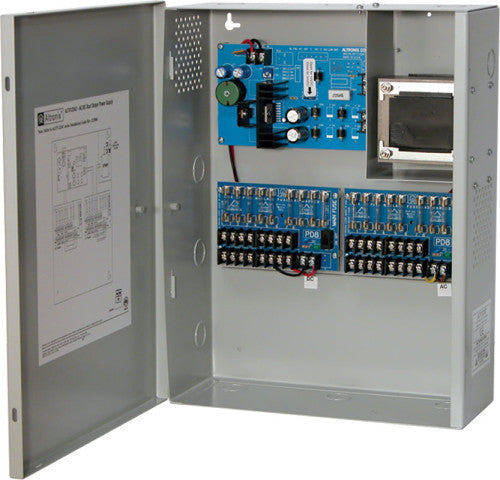

Altronix ALTV1224C AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs are required.

Input
115VAC 50/60 Hz, 1.52A.

Output
Sixteen (16) individually fused outputs.
Eight (8) fuse protected outputs @ 12VDC.
Eight (8) fuse protected outputs @ 24VAC.
7A total output current.
3.5A supply current @ 12VDC.
3.5A supply current @ 24VAC.
Output fuses are rated @ 3.5A/250VAC.
Main fuses are rated at 5A/250VAC.
Filtered and electronically regulated outputs (DC outputs).
Surge suppression (AC outputs).

Features
AC/DC power LED indicators.
Power ON/OFF switch.
Unit maintains camera synchronization.
Ease of installation saves time & eliminates costly labor.

Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 64 BTU/Hr.
System AC input VA requirement: 174.8VA.
