Description

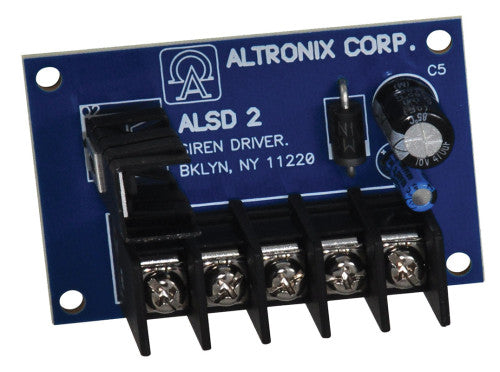

Altronix ALSD2 LOW CURRENT SIREN DRIVER
The ALSD2 are high output, very low current draw, dual channel siren drivers. They are designed to work with alarm panels with limited current capability.
Input Voltage
6VDC or 12VDC operation.
Current draw range from 0.3A to 1.22A based on speaker resistance and supply voltage.
Features
Two (2) channel operation - steady or yelp.
Very low current draw.
Parallel or series speaker wiring
103 db @ 10 ft. @ 6V - 8 Ohms
105 db @ 10 ft. @ 6V - 4 Ohms
106 db @ 10 ft. @ 12V - 8 Ohms
111 db @ 10 ft. @ 12V - 4 Ohms
Electrical
Temperature:
Operating: - 25° C to 55° C ( - 13° F to 131° F).
Storage - 25° C to 70° C ( - 13° F to 158° F).
Relative Humidity 85% +/- 5%.
System input VA requirement: 14.6A.
