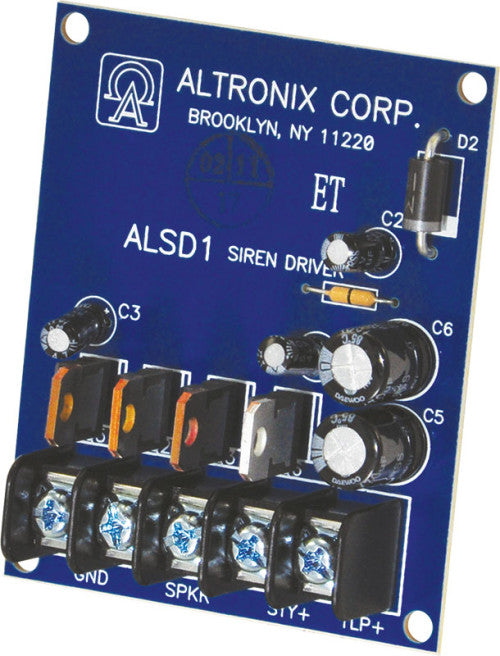

Altronix ALSD1 SIREN DRIVER
The ALSD1 are high output, very low current draw, dual channel siren drivers. They are designed to work with alarm panels with limited current capability.
Input Voltage
6VDC or 12VDC operation.
Current draw range from .5A to 1.8A based on speaker resistance and supply voltage.
Features
Two (2) channel operation - steady or yelp.
Very low current draw.
Parallel or series speaker wiring
113 db @ 10' @ 6 Volts - 8 Ohms
115 db @ 10' @ 6 Volts - 4 Ohms
116 db @ 10' @ 12 Volts - 8 Ohms
120 db @ 10' @ 12 Volts - 4 Ohms
Electrical
Temperature:
Operating - 25° C to 55° C ( - 13° F to 131° F).
Storage - 25° C to 70° C ( - 13° F to 158° F).
Relative Humidity 85% +/- 5%.
System input VA requirement: 21.6A.
