Description
AL624TE220 AL624 IN BC100NC+T1656220 INS
AL624TE220 linear power supply/charger converts 220VAC input into 12VDC @ 1.2A of continuous supply current (see specifications). This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Input
220VAC, 50/60 Hz 0.25A.
Output
12VDC output.
12VDC @ 1.2A supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 0.3A.
PTC battery protection.
(Batteries are sold separately).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 7 BTU/Hr.
System AC input VA requirement: 55VA.
Features

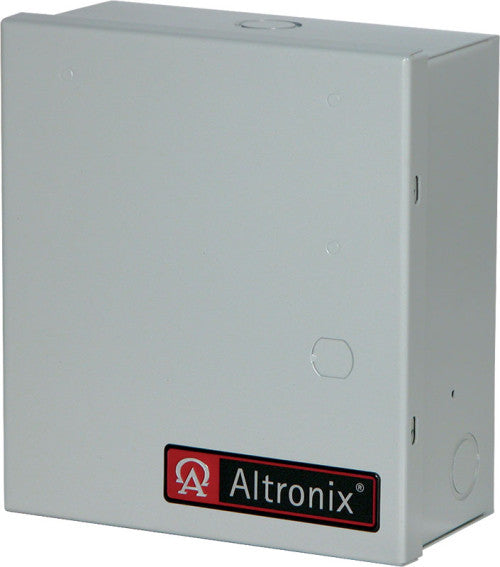

Power supply/charger with enclosure and T1656220 transformer (16.5VAC/56VA).
