Description

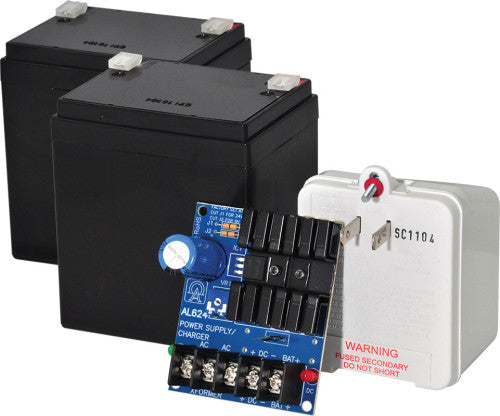

Altronix AL62424C 24VDC 750ma P/S CHGR KIT 4AH
AL624-24C linear power supply/charger kit has a wide range of applications including: access control, security and CCTV system accessories that require additional power.
Input
115VAC, 60 Hz 1.67A.
Output
24VDC output.
24VDC @ 0.75A supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 0.3A.
PTC battery protection.
(Batteries are sold separately).
Visual Indicators
AC input and DC output LED indicators.
Features
Power supply/charger with two (2) BT124 (12VDC/4AH) and TP2440 plug-in transformer (24VAC/40VA).
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 7 BTU/Hr.
System AC input VA requirement: 192.05VA.
