Description

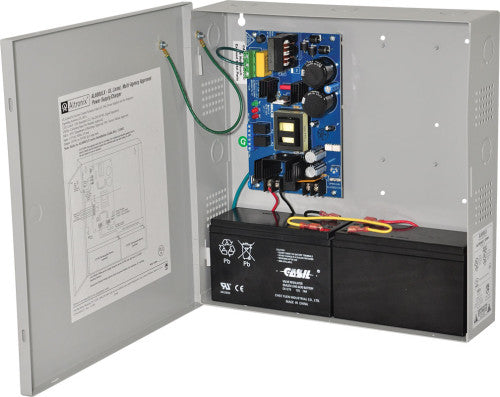

AL600X220 12/24V,6A P/S 400 CABNT 220v
AL600X220 is a power supply/charger that converts a nominal 220VAC, 50/60Hz input into a single 12VDC or 24VDC output.
Input
Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5A.
Output
12VDC or 24VDC selectable output.
6A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 0.7A.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input, DC output and BAT trouble.
Temperature
Operating: 0 to 49° C (32 to 120° F ).
Storage: - 20 to 70° C ( - 4 to 158° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.):
12VDC or 12VAC: 37 BTU/Hr.
24VDC or 24VAC: 74 BTU/Hr.
System AC input VA requirement: 330VA.
