Description

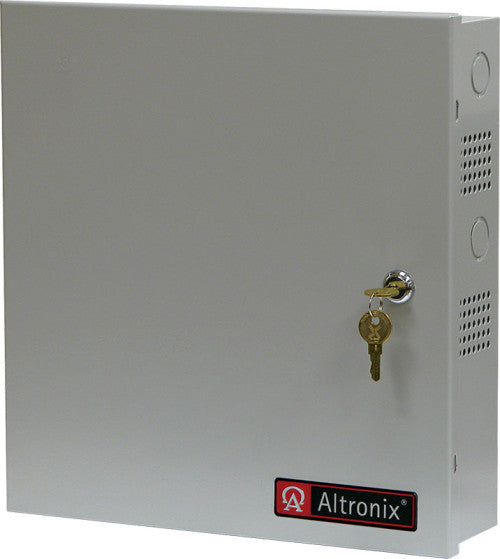

Altronix AL600ULPD4 UL 12/24VDC 6A P/S W/PD4 INST.
AL600ULPD4 is a multi-output power supply/charger which converts a 115VAC, 60Hz input into four (4) 12VDC or 24VDC non power-limited outputs.
Input
Input 115VAC, 60Hz, 3.5A.
Output
12VDC or 24VDC selectable output.
6A continuous supply current.
Four (4) fuse protected outputs.
Output fuses are rated @ 3.5A/250VAC.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 0.7A.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 37 BTU/Hr.
24VDC: 74 BTU/Hr.
System AC input VA requirement: 402.5VA.
