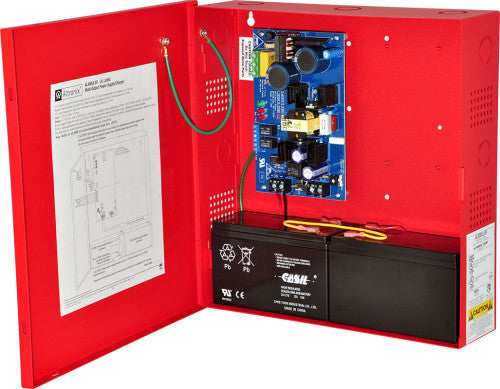

Altronix AL400ULXR AL400ULX PS IN RED ENCLOSURE
AL400ULXR is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output.
Input
Input 115VAC, 60Hz, 3.5A.
Input fuse rated @ 3.5A/250V.
Output
12VDC or 24VDC selectable output.
Burglar Alarm Applications(UL 603):
12VDC = 11.5VDC-13VDC.
24VDC = 23VDC-26VDC.
12VDC @ 4A or 24VDC @ 3A supply current.
Class 2 Rated power limited output.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input, DC output and Battery LED indicators.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 25 BTU/Hr.
24VDC: 37 BTU/Hr.
System AC input VA requirement: 402.5VA.
