Description

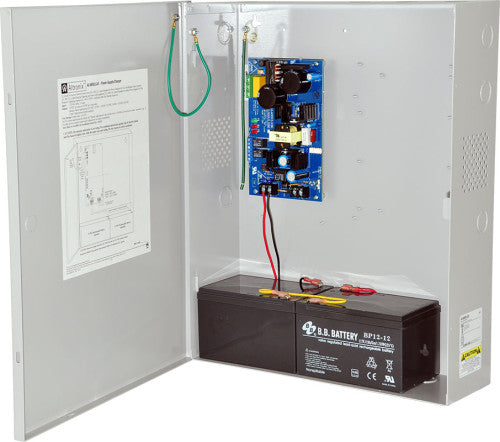

Altronix AL400ULXJG AL400UL UL XL ENCL GREY
AL400ULXJG is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.
Input
Input 115VAC, 60Hz, 3.5A.
Input fuse rated @ 3.5A/250V.
Output
12VDC or 24VDC selectable output.
12VDC @ 4A or 24VDC @ 3A supply current.
Class 2 Rated power-limited output.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 0.7A.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Electrical
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: -20ºC to 70ºC (-4ºF to 158ºF).
Relative Humidity: 85% +/-5%.
BTU/Hr. (approx.):
12VDC: 25 BTU/Hr.
24VDC: 37 BTU/Hr.
System AC input VA requirement: 402.5VA.
