Description

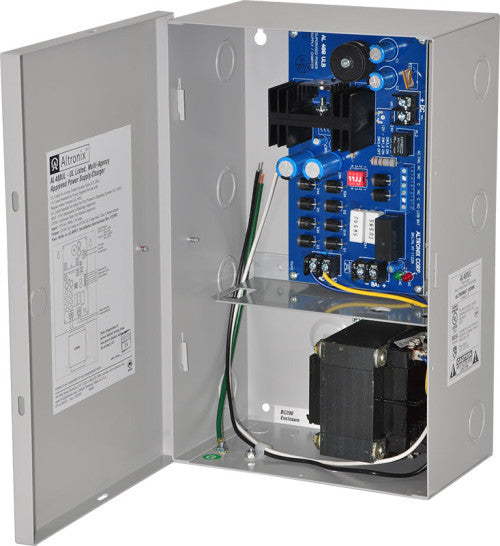

Altronix AL400UL UL LISTED 12-24V 4A PS/CHGR
AL400UL is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output.
Input
Input 115VAC, 60Hz, 3.5A.
Output
12VDC or 24VDC selectable output.
12VDC @ 4A or 24VDC @ 3A supply current.
Class 2 Rated power limited output.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 1.2A.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0 to 49° C (32 to 120° F )
Storage: - 20 to 70° C ( - 4 to 158° F)
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.):
12VDC: 25 BTU/Hr.
24VAC: 37 BTU/Hr.
System AC input VA requirement: 166.75VA.
