Description
AL400PD8CB220 AL400 W/PD8CB 220V IN BC300

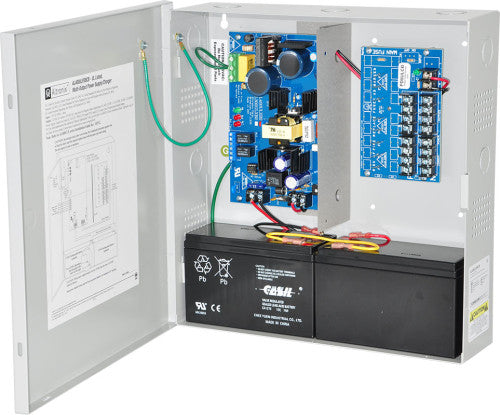

AL400PD8CB220 is a multi-output power supply/charger that converts a nominal 220VAC 50/60Hz input into eight (8) 12VDC or 24VDC outputs.
Input
Nominal 220VAC (range 198VAC - 256VAC), 50/60Hz, 1.5A.
Input fuse rated @ 3.5A/250V.
Output
12VDC or 24VDC selectable output.
12VDC @ 4A or 24VDC @ 3A supply current.
Eight (8) PTC protected outputs (auto-resettable).
Outputs are rated @ 2.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 0.7A.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 25 BTU/Hr.
24VDC: 37 BTU/Hr.
System AC input VA requirement: 330VA.
