Description

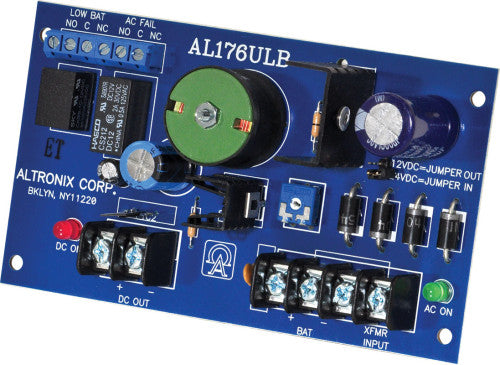

Altronix AL176ULB 12/24VDC 1.75A UL PS/CG SPV Bd
Altronix AL176ULB is a Single Output Power Supply/Charger that converts a low voltage AC input into a PTC protected 12VDC or 24VDC auto-resettable output.
Input
Voltage: 28VAC, 56VA from UL Listed, Class 2 transformer.
Output
Voltage: 12VDC or 24VDC selectable outputs.
Current: 1.75A continuous max.
Class 2 Rated power limited output.
PTC protected outputs, rated @ 2.5A.
Filtered and electronically regulated output.
Other: Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 0.4A.
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts.
Low Battery: Form “C” contacts.
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 11 BTU/Hr.
24VDC: 22 BTU/Hr.
System AC input VA requirement: 57.5VA.
