Altronix AL176UL 12/24VDC 1.75A UL PS/CGR SPV

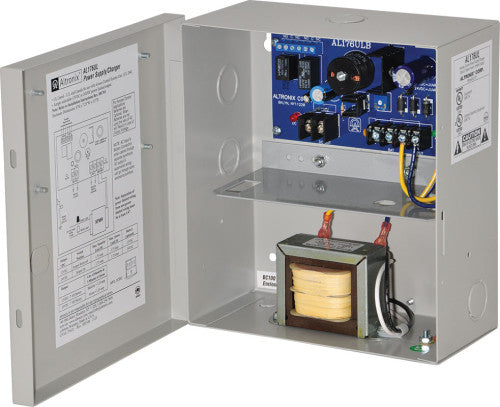

Altronix AL176UL 12/24VDC 1.75A UL PS/CGR SPV Altronix AL176UL is a Single Output Power Supply/Charger that converts a 115VAC 50/60Hz input into a PTC protected 12VDC or 24VDC output. Input Input 115VAC/60Hz, 0.6A. Output 12VDC or 24VDC selectable output. 1.75A supply current. Class 2 Rated power limited output. PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.4A. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 11 BTU/Hr. 24VDC: 22 BTU/Hr. System AC input VA requirement: 69VA.
