Description

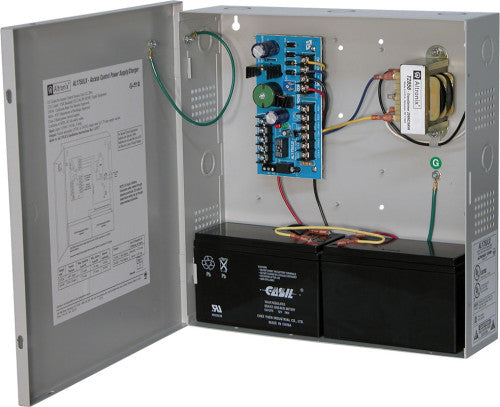

AL175X220 12/24DC@1.75A/2OUT/LG/220 IN
Altronix AL175X220 Switching Power Supply/Charger converts a 220VAC 50/60Hz input into two (2) individually PTC protected 12VDC or 24VDC outputs.
Input
Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.3A.
Access control trigger input.
Output
12VDC or 24VDC selectable outputs.
1.75A supply current.
Two (2) power-limited outputs.
Fail-Safe/Fail-Secure lock output (switched).
Auxiliary power output (unswitched).
PTC protected outputs, rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 400mA.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 11 BTU/Hr.
24VDC: 22 BTU/Hr.
System AC input VA requirement: 66VA.
