Description

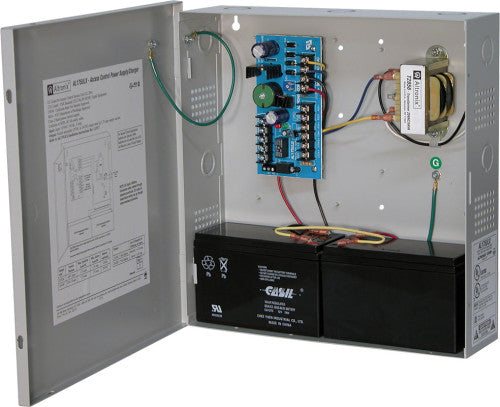

Altronix AL175ULX 12/24VDC 1.75A.UL PS/CGR LG CB
Altronix AL175ULX is a Two (2) Output Switching Power Supply/Charger that converts a 115VAC 60Hz input, into two (2) individually PTC protected 12VDC or 24VDC outputs.
Input
Input 115VAC, 60Hz, 0.6A.
Access control trigger input.
Output
12VDC or 24VDC selectable outputs.
1.75A supply current.
Two (2) Class 2 Rated power limited outputs.
Fail-Safe/Fail-Secure lock output (switched).
Auxiliary power output (unswitched).
PTC protected outputs, rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 400mA.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 11 BTU/Hr.
24VDC: 22 BTU/Hr.
System AC input VA requirement: 69VA.
