Description

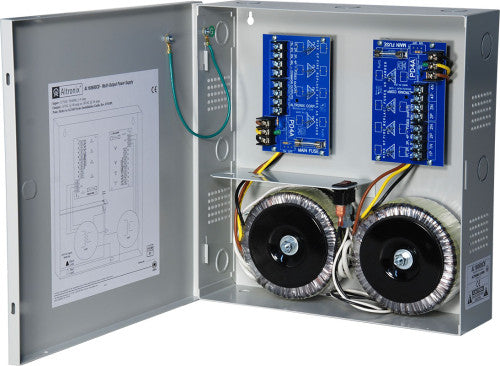

Altronix AL168600CB 16 VAC@36A/18VAC@32A 8 Out
AL168600CB Multi-Output Power Supply provides 16VAC or 18VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.
Input
Input 115VAC, 50/60Hz, 5.4A.
Output
Eight (8) auto-resettable PTC protected outputs.
16VAC or 18VAC output.
16VAC @ 40A (600VA) supply current (5A per device, 6A max.) or 18VAC @ 36A (600VA) supply current (4.5A per device, 6A max.).
Outputs are rated @ 6A.
Two (2) main fuse rated @ 15A/32V.
Surge suppression.
Visual Indicators
AC power LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
16VAC: 328 BTU/Hr.
18VAC: 332 BTU/Hr.
System AC input VA requirement: 621VA.
Features
Illuminated master power disconnect circuit breaker with manual reset.
