Description
AL125X220 2 PTC OUT PW SPLY/LG ENCL/220V

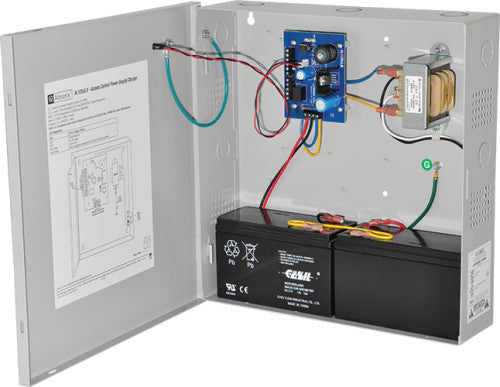

Altronix AL125X220 Series power-limited Power Supply/Chargers convert 220VAC (working range 198VAC - 256VAC) 50/60Hz input into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in Access Control and applications requiring an interface with Fire Alarm Control Panels.
Input
Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.3A.
Access control trigger input.
Output
12VDC or 24VDC selectable outputs.
1A supply current.
Two (2) outputs.
Fail-Safe/Fail-Secure lock output (switched).
Auxiliary power output (unswitched).
PTC protected outputs, rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current: 400mA.
Automatic switch over to stand-by battery when AC fails.
(Batteries are sold separately).
Supervision
Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Indicator (LED)
Unit Status: Normal / No Output / Loss of AC / Triggered.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70ºC ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 6 BTU/Hr.
24VDC: 6 or 12 BTU/Hr.
System AC input VA requirement: 66VA.
