Altronix AL125ULE 12/24VDC 1A UL P/S LESS XFMR
AL125ULE is a Two (2) Output Switching Power Supply/Charger that converts a 24VAC @ 40VA input, into two (2) individually PTC protected 12VDC or 24VDC outputs.
Input
24VAC, 40VA from UL Listed, Class 2 transformer (sold separately).
Access control trigger input.
Output
12VDC @ 1A or 24VDC @ 0.5A selectable outputs.
Two (2) Class 2 Rated power limited outputs.
Fail-Safe/Fail-Secure lock output (switched).
Auxiliary power output (unswitched).
PTC protected outputs, rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current: 400mA.
Automatic switch over to stand-by battery when AC fails.
(Batteries are sold separately).
Supervision
Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Indicator (LED)
Unit Status: Normal / No Output / Loss of AC / Triggered.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70ºC ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 6 BTU/Hr.
24VDC: 6 or 12 BTU/Hr.
System AC input VA requirement: 55.2VA.
Features

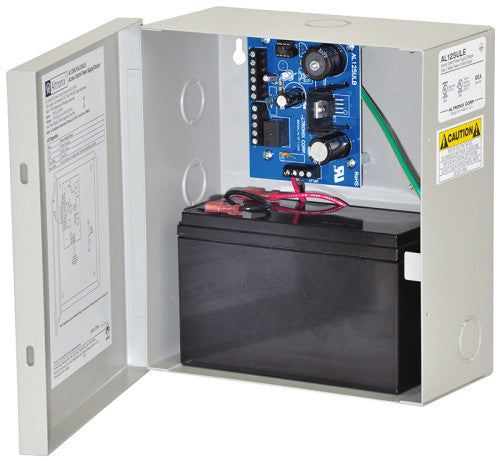

Includes power supply, enclosure and battery leads.
