Description

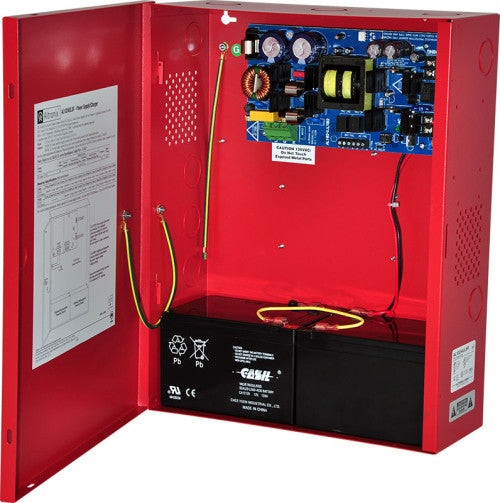

AL1024XR220 10A 24VDC P/S 220v RED ENCL
AL1024XR220 is a power supply/charger that converts a nominal 220VAC, 50/60Hz input into a single 24VDC non power- limited output.
Input
Nominal 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A.
Input fuse rated @ 3.5A/250V.
Output
24VDC output.
10A of continuous supply current for Access Control applications.
8A of continuous supply current for Fire Alarm applications.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 123 BTU/Hr.
System AC input VA requirement: 550VA.
